9LH5656

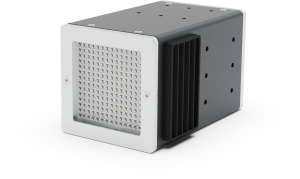

Yeacode 9LH5656 UV LED lamp provides high-strength curing effect, can be combined or separated according to the printhead.
Also, it has adjustable curing strength. With air-cooled heat dissipation and small size of lamp,
it is suitable for installation in different environments
Specifications
| Applicable Printhead | 8D Printhead 、 7TA 、 7RA |
| Curing Power | 500W |
| UV light irradiation length | 56mm |
| UV light irradiation height | 56mm |
| Wavelength | 395nm |
| Peak Irradiance | 12W/cm² |
| Lamp Specifications | 80*80*130mm |
| Working Temperature | 59°F (15°C) -104°F (40°C) |
| Storage Temperature | 41° F (5°C) -113°F (35°C) |
| Certifications | CE、FCC |
