PRISS
The ink recirculation removes bubbles and impurities from the pipelines and printheads, enabling the printheads to self-recover missing lines.
Around-the-clock continues printing, prevents unplanned downtime from affecting production.
Precise flow and temperature control ensure the printhead operates consistently under optimal printing conditions.
The recirculating ink supply system supports printhead printing with 6-axis rotation and movement.
Various software and hardware interfaces, supports network communication, remote control, and modular design for easy equipment integration.
Around-the-clock continues printing, prevents unplanned downtime from affecting production.
Precise flow and temperature control ensure the printhead operates consistently under optimal printing conditions.
The recirculating ink supply system supports printhead printing with 6-axis rotation and movement.
Various software and hardware interfaces, supports network communication, remote control, and modular design for easy equipment integration.

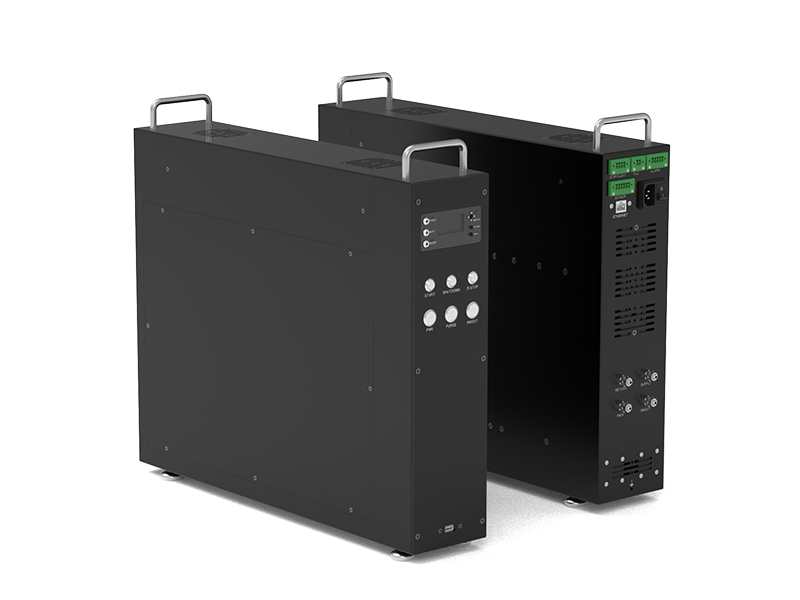

PRISS Recirculating Ink Supply System
• LED real-time status display
• Industrial-grade reliability
• Ink recirculation technology
• Recirculation removes impurities and air bubbles
• Prevents ink sedimentation and nozzle clogging
• Precise flow and temperature control
• Industrial-grade reliability
• Ink recirculation technology
• Recirculation removes impurities and air bubbles
• Prevents ink sedimentation and nozzle clogging
• Precise flow and temperature control
Specifications
| Power Input | AC 220V |
| Basic Functions | Ink circulation, electronic ink priming, ink back-suction, cartridge ink drain, cartridge & external ink tank agitation, cartridge heating & ink heating |
| Ink Supply | Recirculating ink supply |
| Ink Type | UV ink, Oil-based ink |
| Ink Tank Capacity | 1000ml |
| Ink Tank Alarm Level | 230ml |
| Hardware Interface | 1. Power switch, 2. Power input connector, 3. USB port, 4. Power-on button, 5. Start button, 6. Stop button, 7. Emergency stop button, 8. Ink priming button, 9. Ink drain button, 10. Manifold interface, 11. PLC port, 12. Alarm light interface, 13. External heating interface, 14. External ink barrel level detection & agitation interface, 15. Network port |
| Ink Path Interface | 1. Ink supply port, 2. Ink return port, 3. Ink refill port, 4. Ink drain port |
| Negative P. range | -9999pa~-0pa |
| Purge Pressure Range | 0~22999pa |
| Dimension | 450x105x370mm |
| Operating Environment | 23°F(-5°C)-113°F(45°C) |
| Storage Environment | -4°F(20°C)-149°F(65°C) |
| Certifications | CE、FCC |
