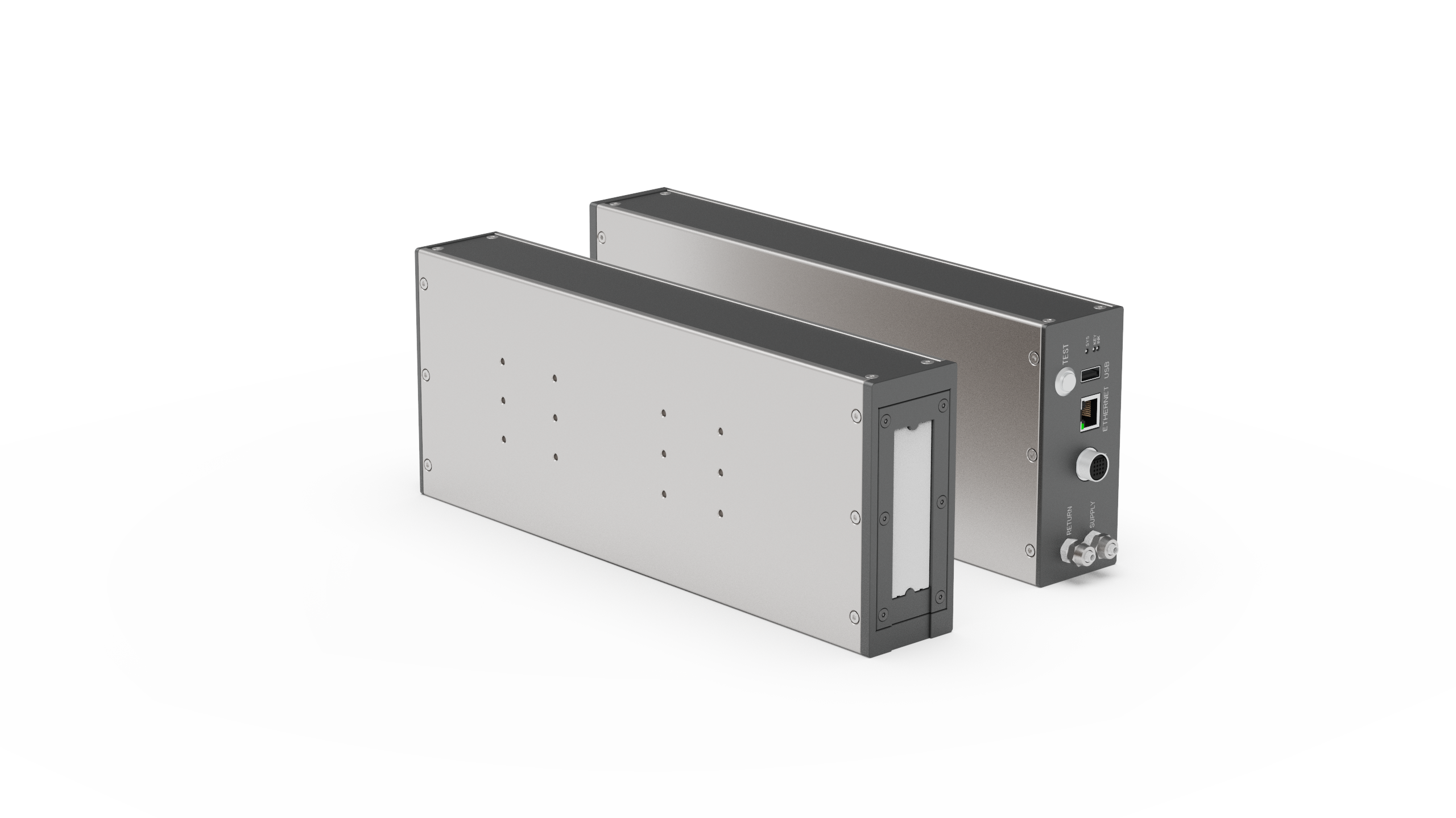

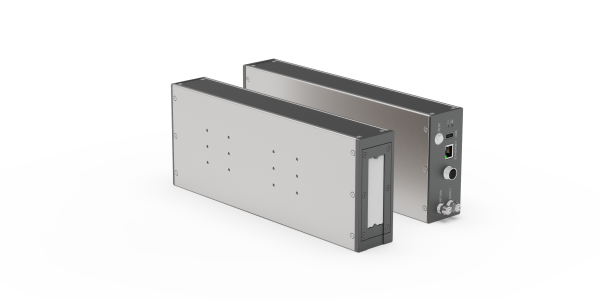

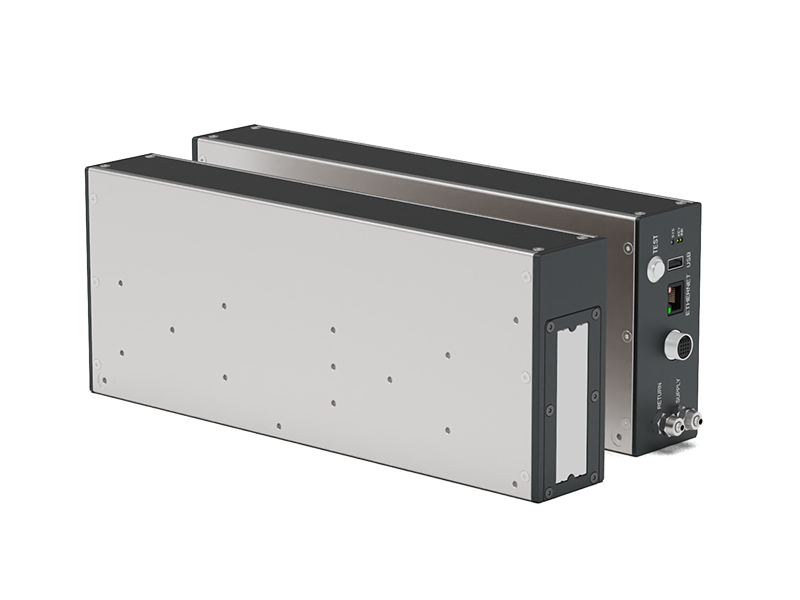

7RA Printhead
7RA printhead has supreme printing performance and compatible with wide range of inks.
It can support up to 54.1mm printing height with 600 DPI. Benefited by the ink recirculating technology,
7RA printhead can work at maximum 5mm throw distance, which is suitable for various complicated industrial environments.
Specifications
| Technology | Internal recirculation piezoelectric head |
| Print Engine | Ricoh G5F |
| Print Speed | 28m/min @600dpi 116m/min @300dpi |
| Grayscale | Seven levels |
| Resolution | 150/300/450/600dpi |
| Print Height | 54.1mm |
| Print Orientation | Any direction: Downward, Sideward, Upward, Horizontal etc. |
| Ink | UV、Oil |
| Ink supply system | Recirculating ink supply system |
| Operating Environment | 15℃-40℃ |
| Storage Temperature | 5℃-45℃ |
| Hardware Dimensions | Single Printhead:344*129*54mm |
| Certifications | CE、FCC |
