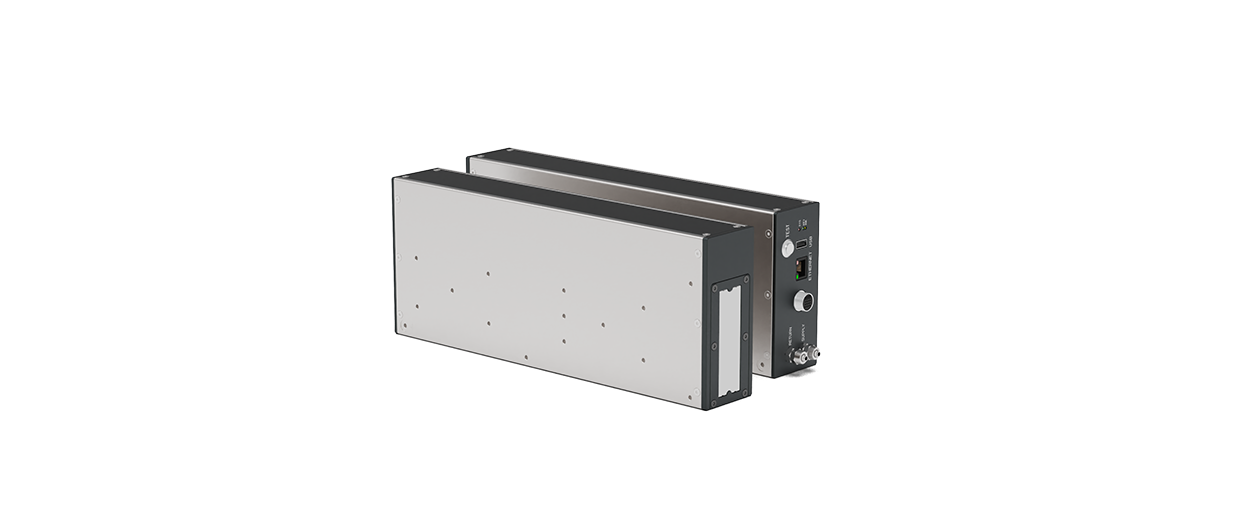

7RD Printhead
The 7RD printhead delivers outstanding printing performance and is compatible with a wide range of inks.
It supports high-definition printing with a maximum resolution of 600 dpi and a large print width of 54.1 mm.
With a line speed capability of up to 116 m/min, it operates reliably in various complex industrial environments and
ensures high-quality printing results for both side printing and downward printing applications.
Specifications
| Technology | Piezoelectric Printing |
| Print Engine | Ricoh G5 |
| Printing Speed | 58m/min @600dpi 116m/min @300dpi |
| Throw Distance | 0-5mm |
| Resolution | 150/300/450/600dpi |
| Print Height | 54.1mm |
| Installation | Downward, Sideward, Upward, Horizontal etc. |
| Ink Type | UV ink, Oil-based ink |
| Ink Supply | Electronic Negative Pressure |
| Operating Temperature | 15℃-40℃ |
| Storage Temperature | 5℃-45℃ |
| Hardware Dimensions | Single Printhead：344*129*54mm |
| Certifications | CE、FCC |
