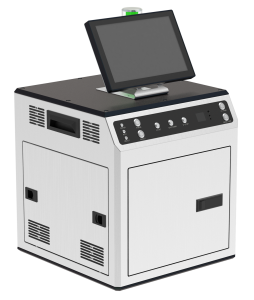

Recirculating Industrial Single-pass Inkjet System
RISIS recirculates ink to eliminate air bubbles and impurities from the printhead and ink path.
This design ensures long-term maintenance-free operation of the system, mitigating the risk of losses caused by unexpected downtime.
Concurrently, the system dynamically detects and precisely controls negative pressure and temperature of the printhead, ensuring a consistent output of high-quality inkjet printing results.
Recirculating Ink Supply System
● Eliminate air bubbles and impurities during ink recirculating.
● Dynamically detects and precisely controls negative pressure and temperature.
● Around-the-clock high-quality and consistent printing.
● Dynamically detects and precisely controls negative pressure and temperature.
● Around-the-clock high-quality and consistent printing.
UV Curing System
● The 100W pre-curing lamp rapidly cures the ink surface, ensuring precise inkjet printing accuracy.
● The 500W high-power curing lamp fully cures the ink.
● The 500W high-power curing lamp fully cures the ink.
Printing System
● Supports various brands of recirculating printheads including Xaar, Toshiba, Seiko, Ricoh, Dimatix, etc.
● Multiple software and hardware interfaces facilitate seamless data exchange and system integration.
● Multiple software and hardware interfaces facilitate seamless data exchange and system integration.
Specifications
| Electrical specifications |
Voltage (V)：110 or 230 AC Current (A)：6 |
| Ink Supply System |
Flow Range (ml/min):60-600 (Based on different pump and pipeline.) Maximum Pressure Difference (kPa):40 Maximum Heating Temperature (℃):50 (at printhead) Fluid Type: Water-based, Oil-based, Solvent-based, UV Fluid Viscosity (cP):5-35 (at Jetting Temperature) Built-in Filter (μm):10 (Field-replaceable) Ink Supply System Volume (ml):1000 (approx.) |
| UV Curing System |
Power:100W (pre-curing) / up to 1000W (high-power curing) Interface: Aviation connector |
| Printing System | Printhead Type: Recirculating printheads |
| Dimension |
Screen Size (mm)：252×168.5×19.5Resolution (dpi)：800×1280 Interface Resolution (dpi)：800×1280 Overall dimensions:370x393x380 |
| Certifications | CE、FCC |
