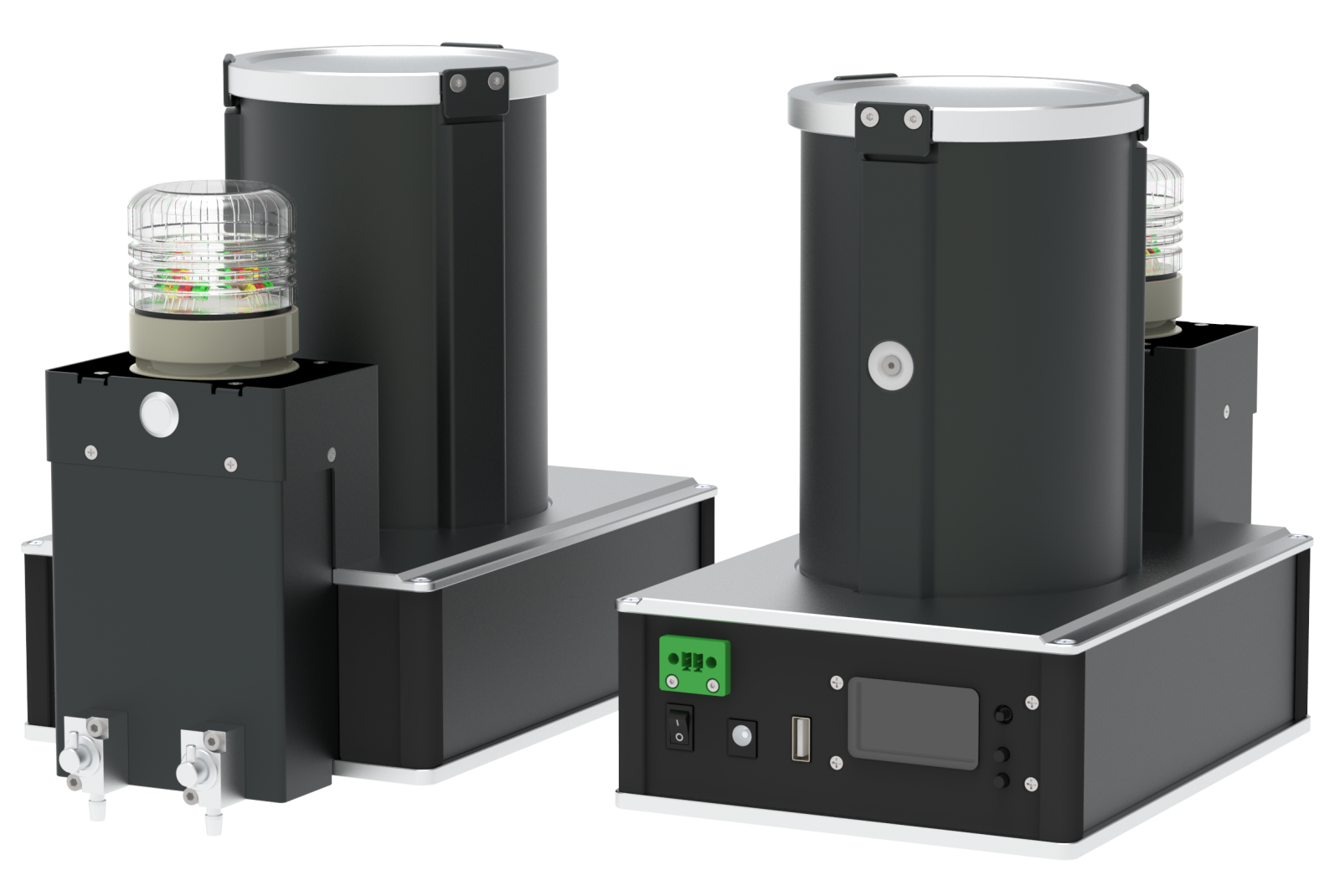

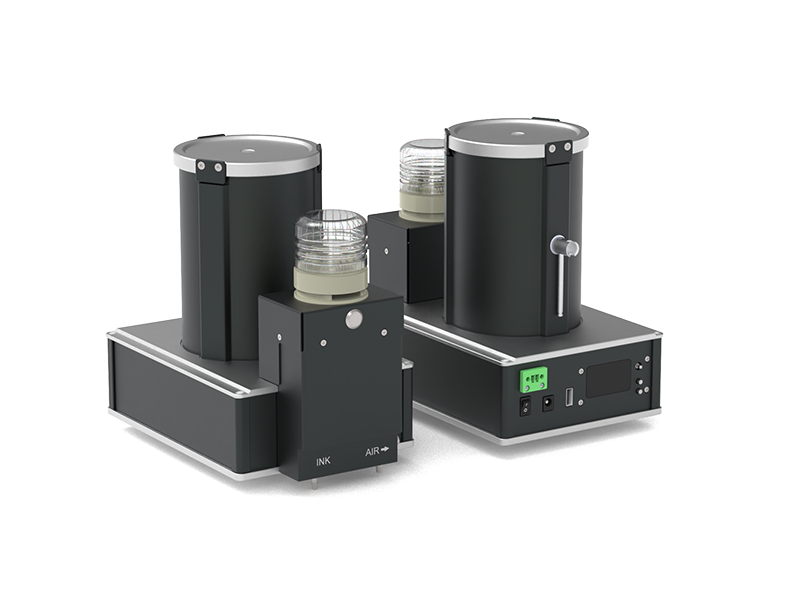

VISS
Precise pressure control technology ensures stable and continuous ink supply under various working conditions, guaranty good print quality and efficiency.
Equipped with LED display to show the status in real time, keep tracking of the equipment operation status and reducing the possibility of unexpected downtime.
The modular, compact and streamlined design allows users to install flexibly according to actual needs, reducing the equipment footprint and leaving ample space for future upgrades or expansion.
It is also equipped with one-button quick maintenance and fault alarm function.
Equipped with LED display to show the status in real time, keep tracking of the equipment operation status and reducing the possibility of unexpected downtime.
The modular, compact and streamlined design allows users to install flexibly according to actual needs, reducing the equipment footprint and leaving ample space for future upgrades or expansion.
It is also equipped with one-button quick maintenance and fault alarm function.
Negative Pressure Ink Supply System
• LED Real-time status display
• Modular design flexible installation
• Precise pressure control
• One-button maintenance fault alarm
• Modular design flexible installation
• Precise pressure control
• One-button maintenance fault alarm
Specifications
| ITEM | VISS-UV | VISS-OIL | |
| Power Input | DC 24V 2.5A | ||
| Basic Functions | Electronic Purge, Electronic negative pressure | ||
| Ink Supply | Negative pressure ink supply | ||
| Ink Type | UV ink, Low solvent ink | Oil-based ink | |
| Ink Tank Capacity | 900ml | ||
| Ink Tank Alarm Level | 60ml-80ml | ||
| Hardware Interface | 1. Power switch, 2. Power Input, 3, USB , 4. Electronic Ink Purge Button, 5. PLC Interface | ||
| Ink Path Interface | 1. Ink outlet, 2. Safety bottle ink outlet | ||
| Negative P. range | -9999~0pa | ||
| Pressure Range | 0~22999pa | ||
| Dimension | 233*150*212 | ||
| Operating Environment | 23°F (-5°C) -113°F (45°C) | ||
| Storage Environment | -4° F (-20°C) -149°F (65°C) | ||
| Certifications | CE、FCC | ||
