MRISS
The split-type recirculating ink supply system features an independent cartridge design with a clear structure and easy maintenance. It mainly includes two types: split-type cartridges with independent circulation chambers and split-type cartridges with shared circulation chambers.Equipped with stable ink circulation, the system keeps the ink path smooth at all times, effectively reducing sedimentation and nozzle clogging risks. It also supports intelligent electronic ink priming for precise and controllable ink output, enabling more efficient ink replacement and air bubble elimination.In addition, the system supports ink heating to adapt to different ambient temperatures, ensuring stable ink viscosity and consistent printing results. This overall improves equipment operation stability and printing quality.

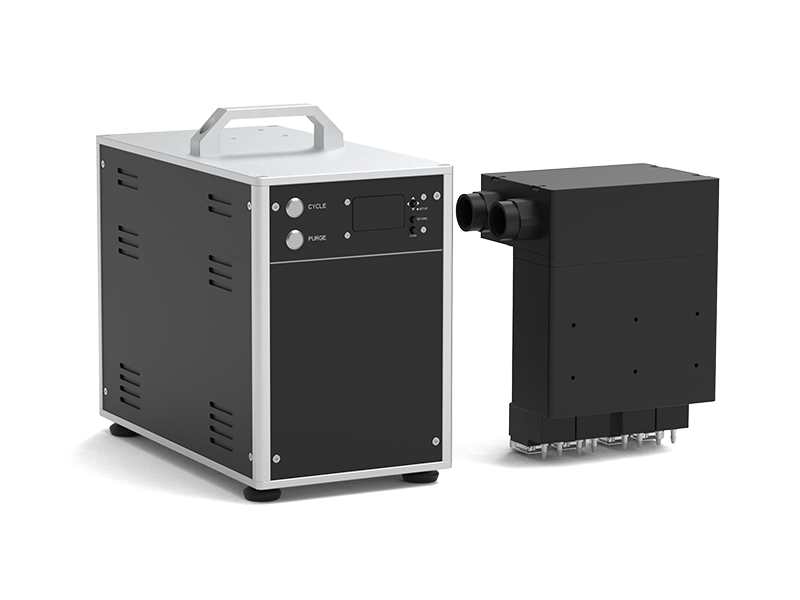

Split-type Recirculating Ink Supply System (MRISS)
• Basic Functions: Ink circulation, electronic ink priming, ink heating
• Real-time LED status display
• Precise pressure control
• One-key maintenance & fault alarm
• Real-time LED status display
• Precise pressure control
• One-key maintenance & fault alarm
Specifications
| Power Input | AC 220V 450W |
| Basic Functions |
Ink circulation, electronic ink priming, ink heating |
| Ink Supply | Recirculating ink supply |
| Ink Type | UV ink, Oil-based ink |
| Ink Tank Capacity | 150ml |
| Hardware Interface | 1. Power switch, 2. Power input connector, 3. USB port, 4. Electronic ink priming button, 5. PLC port, 6. External ink barrel level interface, 7. Alarm light interface |
| Ink Path Interface | 1. Ink supply port, 2. Ink return port, 3. Main tank ink refill port, 4. Sub-cartridge ink refill port |
| Air Path Interface | 1. Ink supply pressure port, 2. Ink return pressure port, 3. Degassing filter interface |
| Negative P. range | -9999~0pa |
| Purge Pressure Range | 0~22999pa |
| Dimension | Main Unit: 160×238×300mm; Cartridge: 150×214×110mm |
| Operating Environment | 23°F(-5°C)-113°F(45°C) |
| Storage Environment | -4°F(20°C)-149°F(65°C) |
| Certifications | CE、FCC |
