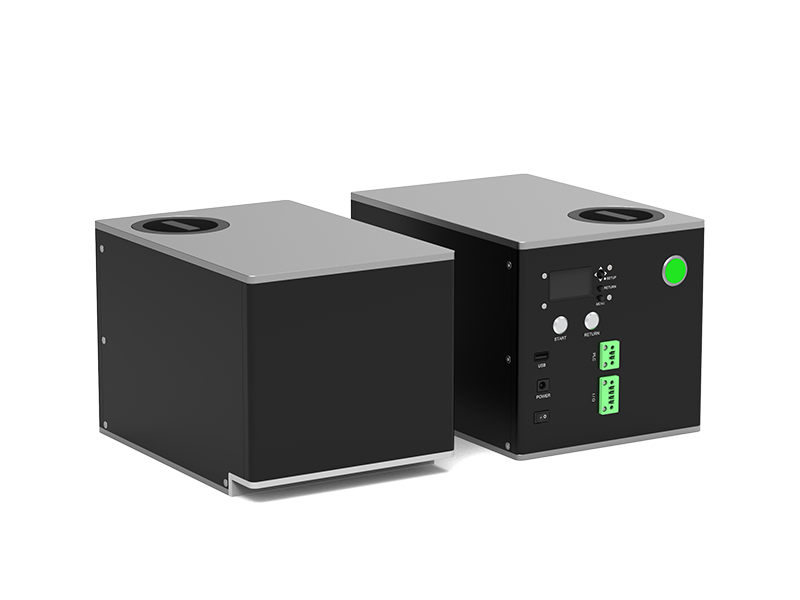

BRISS
BRISS Recirculating Ink Supply System is designed specifically for high-efficiency production scenarios and is compatible with the full range of recirculating printheads.Through continuous ink circulation, it effectively removes impurities and air bubbles from the lines and nozzles, autonomously repairs nozzle drop-out issues, and reduces failures at the source.For enterprises engaged in high-intensity continuous production, stable non-stop operation is the core competitiveness.With its outstanding operational stability, BRISS significantly reduces maintenance frequency and labor costs, effectively avoids the risk of unplanned downtime, ensures sustained and efficient operation of production lines, and achieves stable, all-weather inkjet coding.
Box-type Recirculating Ink Supply System
• Basic Functions: Ink circulation, electronic ink priming, ink tank agitation, ink heating
• Real-time status display via LED
• Flexible installation with modular design
• Precise pressure control
• One-key maintenance & fault alarm
• Real-time status display via LED
• Flexible installation with modular design
• Precise pressure control
• One-key maintenance & fault alarm
Specifications
| Power Input | DC 24V 5A |
| Basic Functions |
Ink circulation, electronic ink priming, ink tank agitation, ink heating |
| Ink Supply | Recirculating ink supply |
| Ink Type | UV ink, Oil-based ink |
| Ink Tank Capacity | 1000ml |
| Ink Tank Alarm Level | 230-250ml |
| Hardware Interface | 1. Power switch, 2. Power input connector, 3. USB port, 4. Electronic ink priming button, 5. PLC port, 6. External ink barrel level & agitation interface |
| Ink Path Interface | 1. Ink supply port, 2. Ink return port, 3. Safety bottle drain port |
| Negative P. range | -9999~0pa |
| Purge Pressure Range | 0~22999pa |
| Dimension | 261×180×175mm |
| Operating Environment | 23°F(-5°C)-113°F(45°C) |
| Storage Environment | -4°F(20°C)-149°F(65°C) |
| Certifications | CE、FCC |
