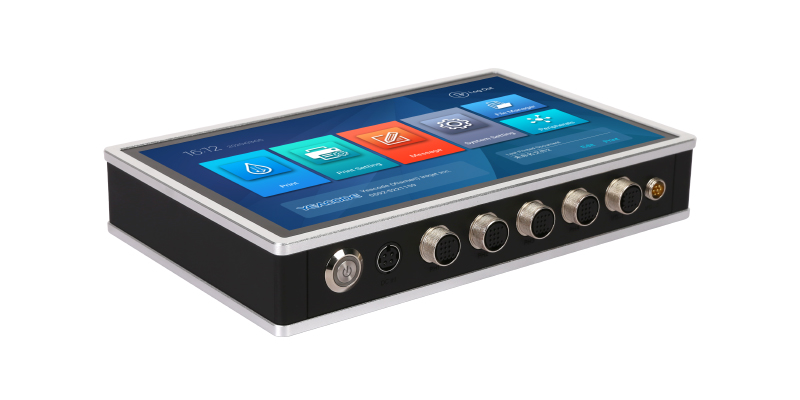

84CT Controller

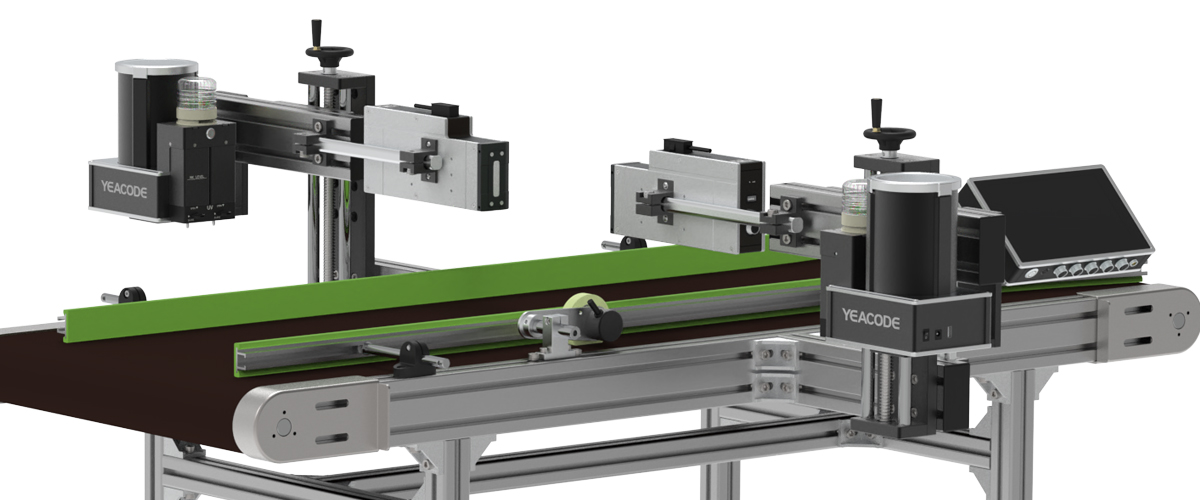

Compatible with different types of printheads
Due to the different needs, different types of printheads can be selected.
Adapted Printheads: 8B Printhead 8C Printhead 8D Printhead 8F Printhead
Adapted Printheads: 8B Printhead 8C Printhead 8D Printhead 8F Printhead
Friendly User Interface
8-inch capacitive color touchscreen, Android based interface, easy access to core functions, support various language and input methods.
Variable Data Printing
Support a wide range of variable data: linear barcode, matrix barcode, date & time, shifts, counter, image, database, table.
Multiple Software/Hardware Interface
Provide software development kits, and support various hardware interfaces (PLC, RS232, RS485, Ethernet) to fulfill various integration needs.
Meet Customized Needs
Open platform and advanced software system structure enable quick response to customized printing needs through plug-ins and updates.
Specifications
Features
| Operating System | Android(Controller), Windows(PC). |
| Ports |
1) 4 printhead connecting ports 2) 2 USB ports 3) I/O_1: Tricolor light, PLC, RS485 4) I/O_2: Encoder, photocell, RS232 5) Ethernet |
| Display | 8- inch industrial capacitive color touchscreen, resolution 1280*800 |
| Power | 110-240V In, 24V 5A Out |
| Working Temperature | 59°F (15°C) -104°F (40°C) |
| Storage Temperature | 41° F (5°C) -113°F (45°C) |
| Hardware Dimensions | 222*143*38mm |
| Certifications | CE、FCC |
| Operating System | Android(Controller), Windows(PC). |
| Language | English(Default), Chinese, and more. |
| Fonts | DroidSansFallback, Arial, and more. |
| Input Methods | Support various Android input methods. |
| Print Content |
Static & Dynamic Variables: Text, Date&Time, Shift, Counter, Database, Image, Shape. |
| Barcode Types |
Linear Barcodes: C25INTER、EAN8/EAN13、GS1 EAN128、CODE39、CODE93、CODE128、CODE128A、
CODE128B、CODE128C、UPCA、UPCE、ITF14、 RSS14、RSS14STACK、RSS14STACK_OMNI、RSS_LTD、RSS_EXP、RSS_EXPSTACK； Matrix Barcodes: QRCODE、GS1 QRCODE、PDF417、DataMatrix、GS1 DataMatrix、GridMatrix、AZTEC Code； |
| Print Modes | Standard, Continuous, Back & Forth. |
| Supported Database | Text、Excel、Access、SQL Sever |
