8B Printhead
Yeacode 8B printhead prints up to 71.8mm height for single printhead. It supports any available combination and positioning of up to 4 printheads with maximum print height 280mm. High quality contents downward/sideward in high speed production lines, supports oil based and UV ink to print on both porous and non-porous substrates.

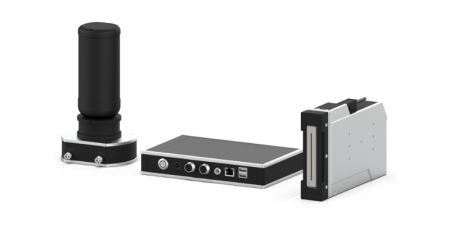

Single printhead print height 71.8mm
Single printhead print height 71.8mm

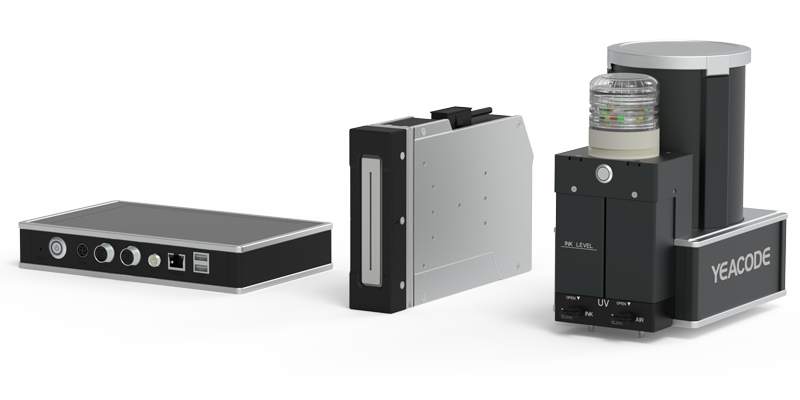

Control system: 81 Controller 84 Controller
Ink Supply System: MCISS

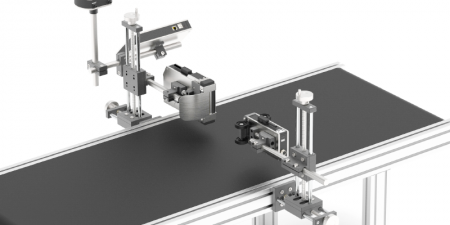

4 printheads can be combined or separated
Support any available combination and positioning of up to 4 printheads, one print file contain the information of different groups of printheads, available to edit and control in the same time
Control different print surface in the same time
Modular design, minimal maintenance
Control system: 84 Controller
Ink Supply System: MCISS
Specifications
| Technology |  |
Piezoelectric Printing |
| Print Engine | |
SEIKO |
| Print Speed | |
1-55mpm (180dpi) |
| Throw Distance | |
0-5mm (Optimum) |
| Resolution | |
Vertical: 180DPI Horizontal: 180/300/360DPI |
| Print Height | |
81 Series: 0.5-71.8mm 84 Series: 0.5-280mm |
| Print Orientation | |
Sideward/Downward; |
| Ink | |
Oil-based, UV ink; |
| Ink Management | |
Auto read ink type and info, auto track ink usage. |
| Working Temperature | |
59°F (15°C) -104°F (40°C) |
| Storage Temperature | |
41° F (5°C) -113°F (45°C) |
| Hardware Dimensions | |
Single Printhead: 226.5*144*43.5mm |
| Certifications | |
CE、FCC |
