600DPI vertical print resolution, Maximum 54.1mm print height; Freely combination,
separation, stitching of 4 printheads, up to 216mm height total.
Maximum 260m/min print speed working in various production environment; High quality print effect at both sideward and downward.
Oil based and UV based ink for Porous or non-porous substrates.
separation, stitching of 4 printheads, up to 216mm height total.
Maximum 260m/min print speed working in various production environment; High quality print effect at both sideward and downward.
Oil based and UV based ink for Porous or non-porous substrates.

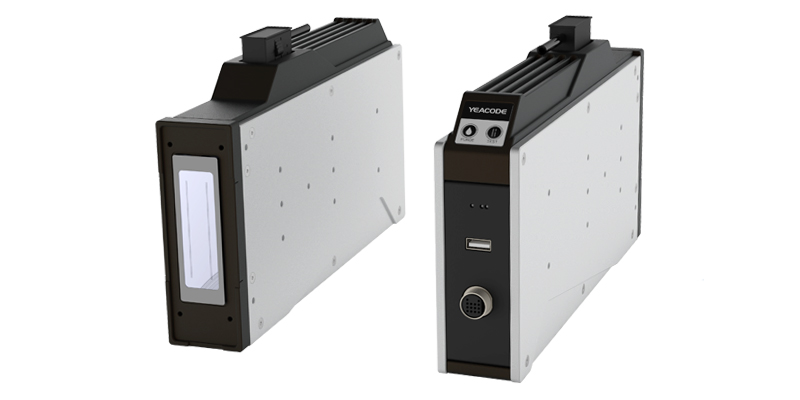

Large Size
54mm print height per single head,
freely combination,stitching of 4 printheads,
up to 216mm height total.

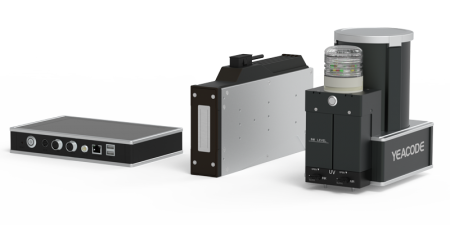

Control system: 81 Controller 84 Controller

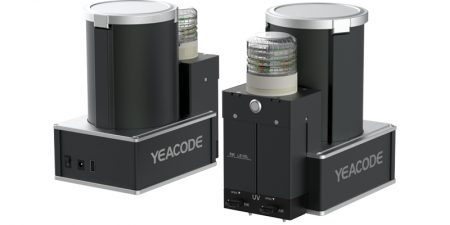

Multi-Function Continuous Ink Supply System(MCISS)
YEACODE newly launched ink supply system supports siphon & negative pressure
dual-mode ink supply, suitable for UV ink and oil ink. the model features one&button purging,
low ink detection,built-in heating and auto-stirring etc. The stable and
reliable ink supply system brings a new experience to coding and marking.
Ink Supply System: MCISS
600DPI
Horizontal:150/300/600DPI; Vertical:150/300/600DPI;
each row of nozzles alternate printing to meet the needs at
high speed and high resolution.
260m/min
Ricoh MH5420(G5) adapted, max 260m/min print speed
to meet various production needs.
Specifications
Technology | Piezoelectric Printing | |
Print Engine | Ricoh MH5420 | |
Print Speed | Max 260m/min | |
Throw Distance | 0-5mm (Optimum) | |
Resolution | Horizontal DPI 150/300/600; Vertical DPI 150/300/600; 300*300DPI and 150*150DPI high speed alternate printing |
|
Print Height | 54mm | |
Print Orientation | Sideward/Downward; | |
Ink | Oil-based, UV ink; | |
Ink Management | Auto read ink type and info, auto track ink usage. | |
Working Temperature | 59°F (15°C) -104°F (40°C) | |
Storage Temperature | 41° F (5°C) -113°F (45°C) | |
Hardware Dimensions | 158*279.7*44.5mm | |
Certifications | CE、FCC |
