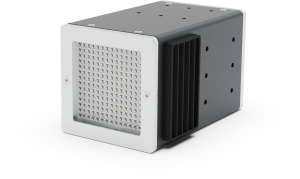

9LH5656
Yeacode 9LH5656 UV LED lamp provides high-strength curing effect, can be combined or separated according to the printhead. Also, it has adjustable curing strength. With air-cooled heat dissipation and small size of lamp, it is suitable for installation in different environments

Specifications
Applicable Printhead | ![]() |
8D Printhead |
Curing Power | ![]() |
500W |
UV light irradiation length | ![]() |
56mm |
UV light irradiation height | ![]() |
56mm |
Wavelength | ![]() |
395nm |
Peak Irradiance | ![]() |
12W/cm² |
Lamp Specifications | ![]() |
135*90*80mm |
Working Temperature | ![]() |
59°F (15°C) -104°F (40°C) |
Storage Temperature | ![]() |
41° F (5°C) -113°F (45°C) |
Certifications | ![]() |
CE、FCC |
