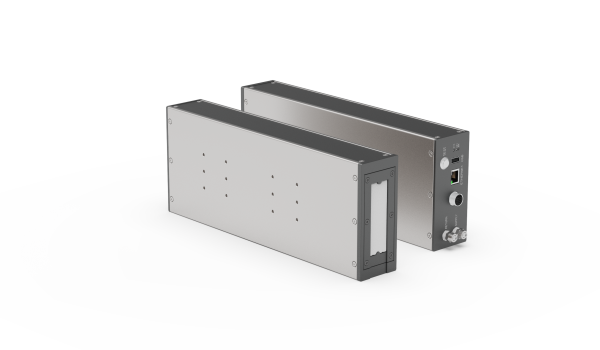

7RA Printhead
7RA printhead has supreme printing performance and compatible with wide range of inks. It can support up to 54.1mm printing height with 600 DPI. Benefited by the ink recirculating technology, 7RA printhead can work at maximum 5mm throw distance, which is suitable for various complicated industrial environments.
Single printhead print height 54.1mm
Control system: 71CT Controller
Ink Supply System: VRISS
Specifications
| Technology |  |
Internal recirculation piezoelectric head |
| Print Engine | |
Ricoh G5F |
| Print Speed | |
220m/min |
| Grayscale | |
Seven levels |
| Resolution | |
600DPI |
| Print Height | |
54.1mm |
| Print Orientation | |
Any direction: Downward, Sideward, Upward, Horizontal etc. |
| Ink | |
UV、Oil |
| Ink supply system | |
Recirculating ink supply system |
| Operating Environment | |
15℃-40℃ |
| Storage Temperature | |
5℃-45℃ |
| Hardware Dimensions | |
Single Printhead:344*129*54mm |
| Certifications | |
CE、FCC |
