9LH7434

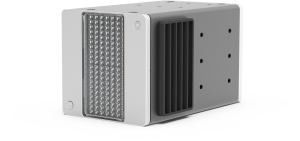

Yeacoe 9LH7434 UV LED lamp provides high-strength curing effect, can be combined or separated according to the printhead. Also, it has adjustable curing strength. With air-cooled heat dissipation and small size of lamp, it is suitable for installation in different environments
Specifications
| Applicable Printhead |  |
8A Printhead 8F Printhead |
| Curing Power | |
500W |
| UV light irradiation length | |
74mm |
| UV light irradiation height | |
34mm |
| Wavelength | |
395nm |
| Peak Irradiance | |
12W/cm² |
| Lamp Specifications | |
135*90*80mm |
| Working Temperature | |
9°F (15°C) -104°F (40°C) |
| Storage Temperature | |
0° F (-18°C) -140°F (60°C) |
| Certifications | |
CE、FCC |
