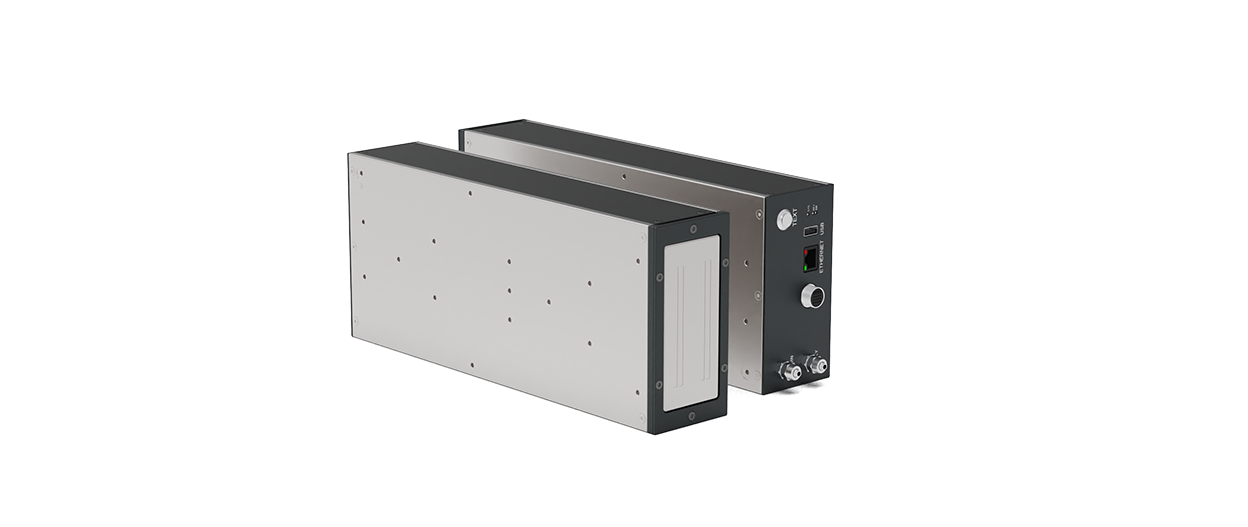

7XA Printhead
Equipped with the Seiko 2002 industrial-grade recirculating piezoelectric printhead,
the 7XA delivers high-definition printing at 720dpi with a large print height of 70.6mm, fully meeting high-quality coding requirements.
Supporting a maximum line speed of 76m/min and featuring a flexible 10mm print distance,
it ensures stable performance in various complex industrial production scenarios, producing clear and durable markings on a wide range of materials.
Specifications
| Technology | Recirculating Piezoelectric Printhead |
| Print Engine | Xaar 2002 |
| Printing Speed | 76m/min @720dpi |
| Throw Distance | 0-10mm |
| Resolution | 180/360/540/720dpi |
| Print Height | 70.6mm |
| Installation | Downward, Sideward, Upward, Horizontal etc. |
| Ink Type | UV ink, Oil-based ink |
| Ink Supply | Recirculating Ink Supply System |
| Operating Temperature | 15℃-40℃ |
| Storage Temperature | 5℃-45℃ |
| Hardware Dimensions | Single Printhead：336x135x65mm |
| Certifications | CE、FCC |
