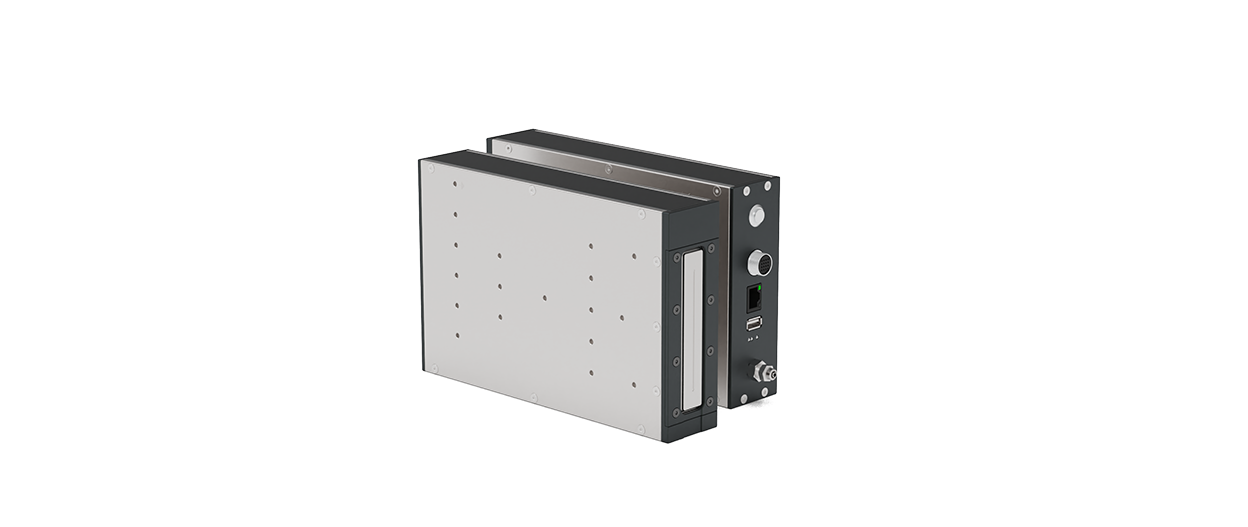

7SB Printhead
7SB printhead developed with SEIKO 510 industrial Pizeo print engine,horizontal resolution of 180 dpi,
printing height of 71.8 mm, industrial-grade printhead adapts to various harsh working environments,
Support both sideward and downward installation, and valid for oil based and UV ink,
to achieve excellent printing performance on various substrate.
Specifications
| Technology | Piezoelectric Printing |
| Print Engine | Seiko 510 |
| Print Speed |
50m/min @180dpi 25m/min @360dpi |
| Throw Distance | 0-5mm |
| Resolution | 180dpi |
| Print Height | 71.8mm |
| Installation | Downward, Sideward, Upward, Horizontal etc. |
| Ink Type | UV ink, Oil-based ink |
| Ink supply system | Electronic Negative Pressure |
| Operating Environment | 15℃-40℃ |
| Storage Temperature | 5℃-45℃ |
| Hardware Dimensions | Single Printhead：236*142*45mm |
| Certifications | CE、FCC |
