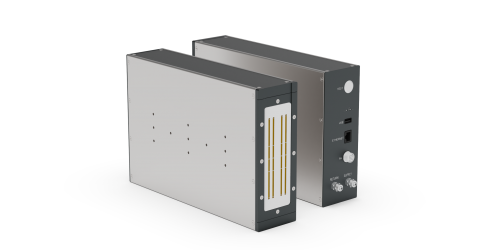

7SA Printhead
7SA printhead has supreme printing performance and compatible with wide range of inks.
It can support up to 108.3mm printing height with 360 DPI. Benefited by the ink recirculating technology,
7SA printhead can work at maximum 3cm throw distance, which is suitable for various complicated industrial environments.
Single printhead print height 108.3mm

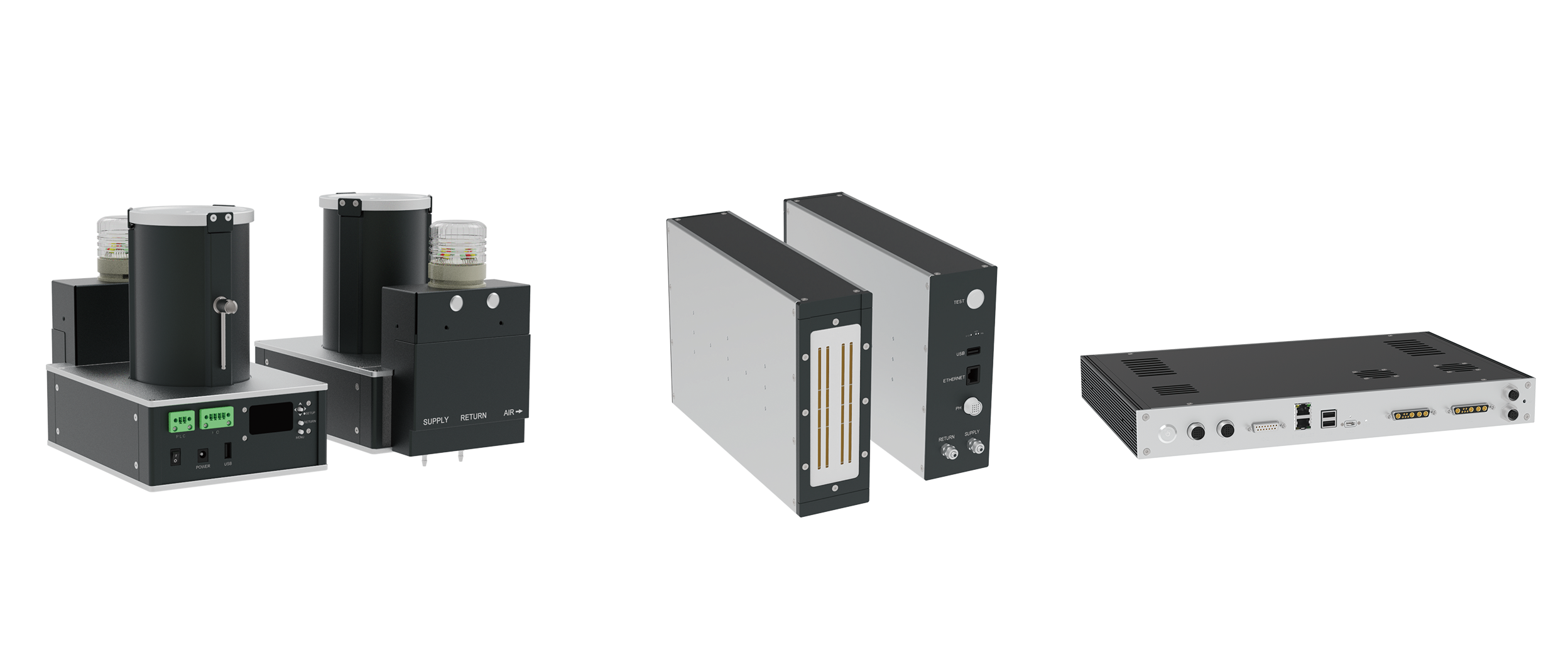

Control system: 71CT Controller
Ink Supply System: VRISS
Ink Supply System: VRISS
Specifications
| Technology | Piezoelectric printhead |
| Print Engine | SEIKO RC1536 |
| Print Speed | Up to 118m/min |
| Throw Distance | Up to 3cm |
| Resolution | 360DPI |
| Print Height | 108.3mm |
| Print Orientation | Sideward/Downward; |
| Ink | Oil-based, UV ink |
| Ink supply system | Recirculating ink supply system |
| Operating Environment | 15℃-40℃ |
| Storage Temperature | 5℃-45℃ |
| Hardware Dimensions | Single Printhead: ：190*290*65mm |
| Certifications | CE、FCC |
