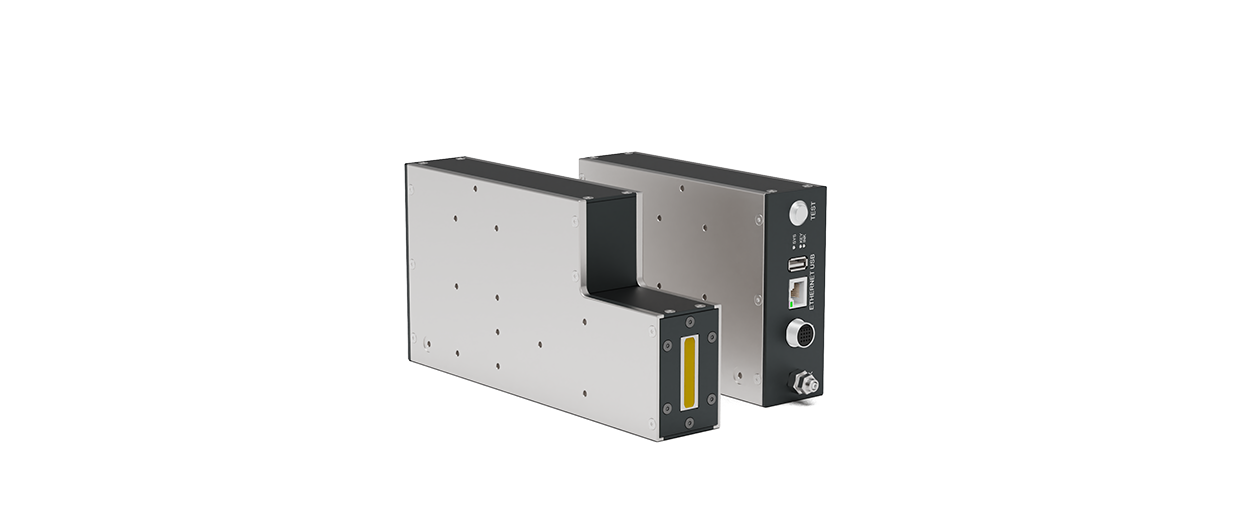

7RH Printhead
Featuring a Japan-made industrial piezoelectric printhead, the 7RH printhead delivers stable performance in various complex working conditions.
With a high resolution of 300 dpi and a print height of 32.4 mm, it supports a production line speed of up to 60 m/min and allows flexible installation

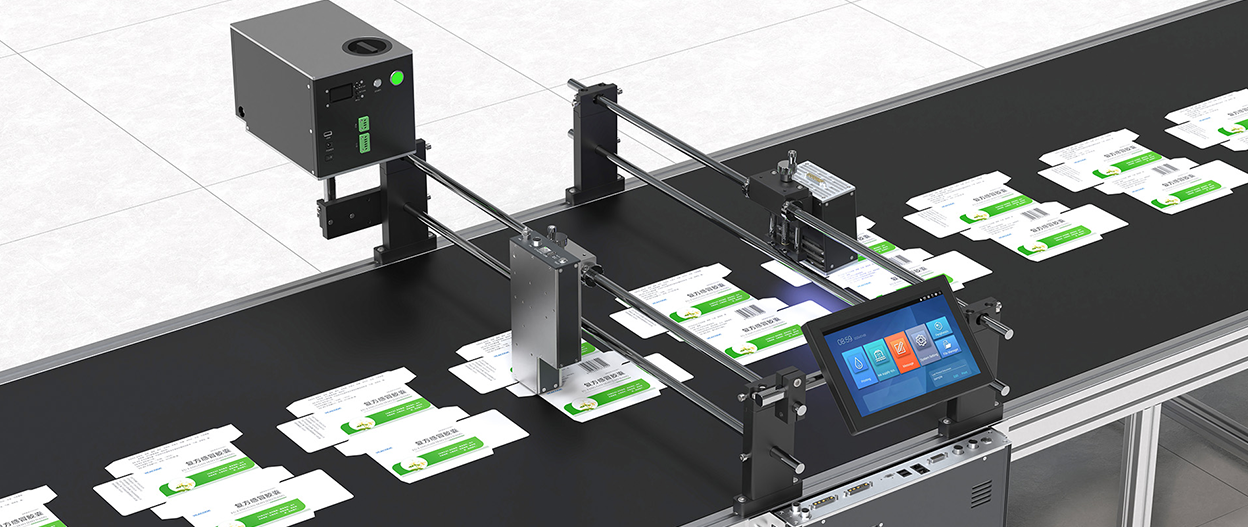

for both downward and side printing.Compatible with oil-based inks and UV inks, it achieves excellent printing results on almost all substrates.
Specifications
| Technology | Piezoelectric Printing |
| Print Engine | Ricoh G2 |
| Print Speed | 60m/min @300dpi |
| Throw Distance | 0-5mm |
| Resolution | 150/300dpi |
| Print Height | 32.4mm |
| Installation | Downward, Sideward, Upward, Horizontal etc. |
| Ink Type | UV ink, Oil-based ink |
| Ink supply system | Electronic Negative Pressure |
| Operating Environment | 15℃-40℃ |
| Storage Temperature | 5℃-45℃ |
| Hardware Dimensions | Single Printhead：250*120*45mm |
| Certifications | CE、FCC |
