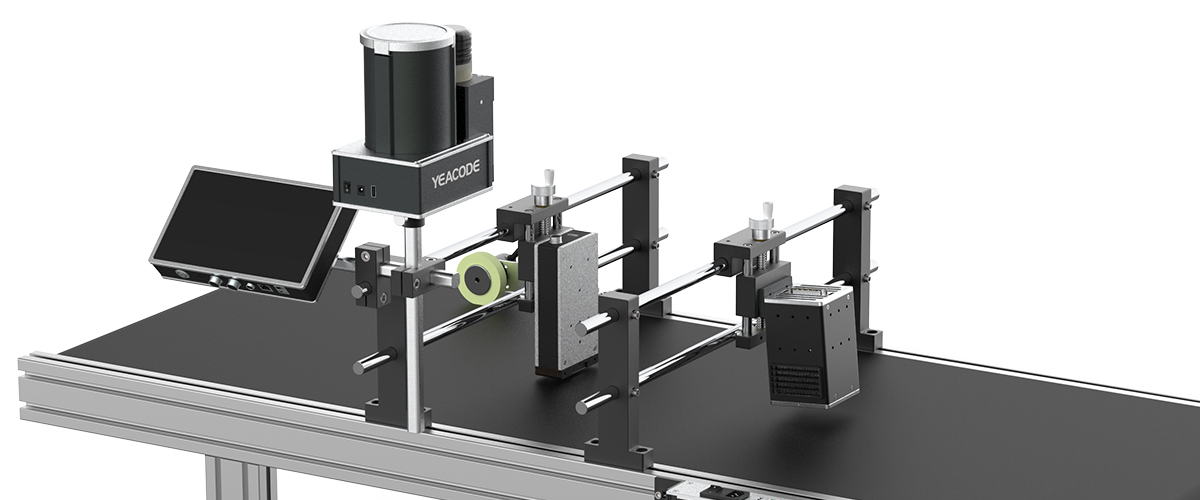

81 Series Inkjet Printer
Yeacode 81 Series Inkjet Printer prints up to 32.4mm height high quality contents downward/sideward in high speed production lines, also supports water based, oil based, solvent and UV ink to print on both porous and non-porous substrates.
Friendly User Interface
8-inch capacitive color touchscreen, Android based interface, easy access to core functions, support various language and input methods.
Variable Data Printing
Support a wide range of variable data: linear barcode, matrix barcode, date & time, shifts, counter, image, database, table.
Continuous Ink Supply System
Centralized continuous ink supply and management, minimize production line down time and ink cost. Encrypted ink cartridge ensures consistent printing quality.
Multiple Software/Hardware Interface
Provide software development kits, and support various hardware interfaces (PLC, RS232, RS485, Ethernet) to fulfill various integration needs.
Meet Customized Needs
Open platform and advanced software system structure enable quick response to customized printing needs through plug-ins and updates.
| Technology |  |
Piezoelectric Printing |
| Print Speed | |
0-150 mpm |
| Throw Distance | |
<5mm |
| Resolution | |
300dpi |
| Print Height | |
0.5-32.4mm |
| Ports | |
USB*2, 12pin I/O_1 (PLC, RS485, Alarm Light), 7pin I/O_2 (Encoder, Photocell, RS232), Ethernet. |
| Ink Supply | |
Continuous Ink Supply System(CISS), with built-in alarm lights. |
| Display | |
8- inch industrial capacitive color touchscreen, resolution 1280*800 |
| Power | |
110-240V In, 24V 5A Out |
| Print Orientation | |
Sideward/Downward; |
| Ink | |
Water-based, Solvent, Oil-based, UV ink; |
| Ink Management | |
Auto read ink type and info, auto track ink usage. |
| Working Temperature | |
59°F (15°C)~104°F (40°C) |
| Storage Temperature | |
41° F (5°C)~113°F (45°C) |
| Hardware Dimensions | |
Controller: 222*143*38mm Printhead: 172*87*38mm CISS: 120*103*70mm |
| Certifications | |
CE、FCC |
| Operating System | Android(Controller), Windows(PC). |
| Language | English(Default), Chinese, and more. |
| Fonts | DroidSansFallback, Arial, and more. |
| Input Methods | Support various Android input methods. |
| Print Content | Static & Dynamic Variables: Text, Date&Time, Shift, Counter, Database, Image, Shape. |
| Barcode Types | Linear Barcodes: C25INTER、Code128、CODE39、EANX、CODE128、EAN13、UPCA、 UPCE、EAN128、INT25、ITF14、RSS14、RSS14STACK、RSS14STACK_OMNI、RSS_LTD、 RSS_EXP、RSS_EXPSTACK、CODE93； Matrix Barcodes: PDF417、DataMatrix、QRCODE、GridMatrix； |
| Print Modes | Standard, Continuous, Back & Forth. |
| Supported Database | Text, Excel, Access, SQL Server |
| Document |
 Brochure Download |
Coming Soon…
